Category Archives: Motores

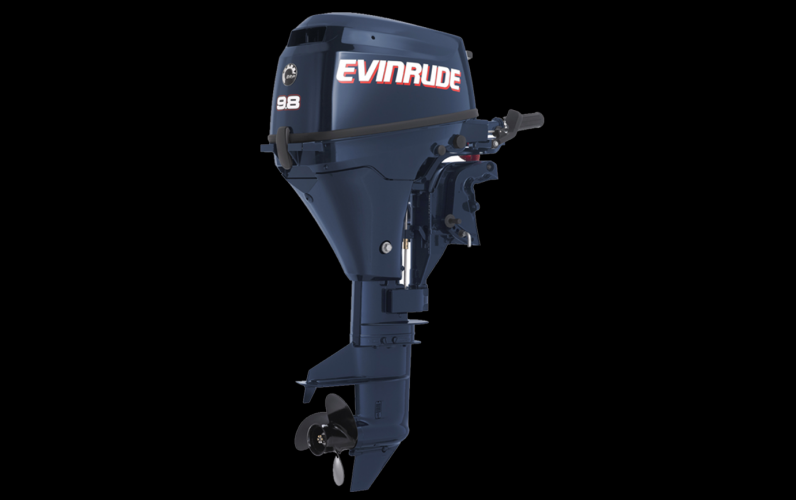

BRAND:                EVINRUDE
TYPE:                   PORTABLES
MODEL  :              PORTABLES
VERSION:             9.8 HP
SPECIFICATIONS
ENGINE MODEL E10TEL4 (BLUE) / E10EL4 (BLUE) / E10TPL4 (BLUE) / E10TPX4 (BLUE) / E10PL4 (BLUE) / E10PX4 (BLUE) / E10R4 (BLUE) / E10LR4 (BLUE)
ENGINE TYPE     2-CYLINDER
BORE X STROKE IN (MM)                 55 X 44 (2.17 X 1.73)
DISPLACEMENT CU IN (CC)             12.8 (209)
GEAR RATIO (SHAFT LENGTH)1       2.08:1
FULL THROTTLE RPM RANGE          5000-6000 RPM
WEIGHT IN LBS (KG) (HP)2               81.5 (37 KG)
STARTING 1
ELECTRIC ROPE
CONTROLS
MECHANICAL TILLER HANDLE
FUEL INDUCTION
CARBURETED
ALTERNATOR OUTPUT   «ONLY ON ELECTRIC MODELS: 12V, 145W, 6A (STANDARD ON ELECTRIC START MODELS)»
STEERING1
TILLER OR REMOTE
TRIM METHOD1 MANUAL OR POWER TILT
SHAFT LENGTH (IN MM) COLOR (HP)1
15” (381) BLUE / 20” (508) BLUE / 25” (635) BLUE
RECOMMENDED FUEL   87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»

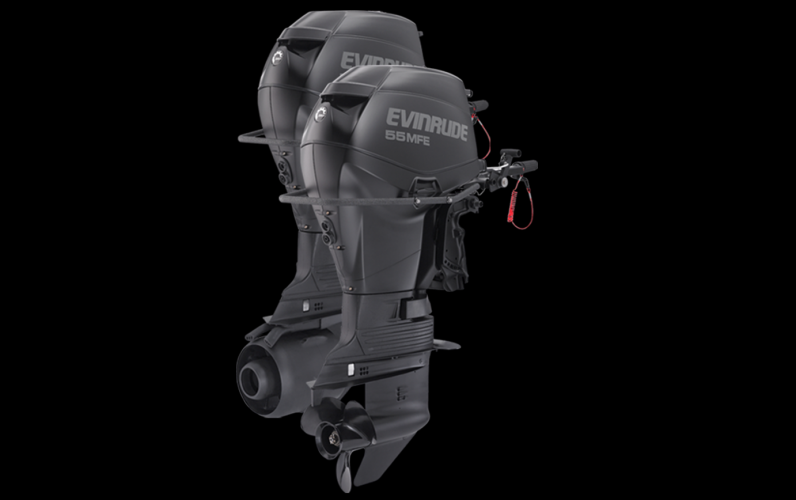

BRAND: EVINRUDE
TYPE:    MULTI-FUEL
MODEL: MULTI-FUEL
VERSION: 55 HP
SPECIFICATIONS
ENGINE MODEL
«E55MRL (TACTICAL BLACK), E55MJRL (TACTICAL BLACK)»
ENGINE TYPE INLINE 2-CYLINDER E-TEC D.I.
BORE X STROKE IN (MM) 3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC) 52.7 (864) INLINE 2
GEAR RATIO (SHAFT LENGTH)1 2.9:1
FULL THROTTLE RPM RANGE 5500-6000RPM
WEIGHT IN LBS (KG) (HP)2 250 (113 KG)
STARTING 1 ROPE
CONTROLS MECHANICAL
FUEL INDUCTION E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT 81 AMPS TOTAL / 25 NET DEDICATED2
STEERING1 TILLER
TRIM METHOD1 MANUAL TILT W/ ASSIST CYLINDER
TRIM RANGE -5 TO 15
TILT RANGE 68
SHAFT LENGTH (IN MM) COLOR (HP)1 20” (508) TACTICAL BLACK
LUBRICATION MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L) 2
RECOMMENDED OIL EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL 87 OCTANE
WARRANTY «3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE «EPA 2013, CARB 3 STAR, EUROPEAN UNION»

BRAND:   EVINRUDE
TYPE:     H.O. SERIES
MODEL:   H.O. SERIES
VERSION: 40 H.O.
SPECIFICATIONS
ENGINE MODEL
«E40DHL (BLUE), E40DHSL (WHITE)»
ENGINE TYPE
INLINE 2-CYLINDER E-TEC D.I.
BORE X STROKE IN (MM)
3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC)
52.7 (864) INLINE 2
GEAR RATIO (SHAFT LENGTH)1   2.9:1
FULL THROTTLE RPM RANGE
5500-6000RPM
WEIGHT IN LBS (KG) (HP)2
232 (105 KG)
STARTING 1
ELECTRIC
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   81 AMPS TOTAL / 25 NET DEDICATED2
STEERING1
REMOTE (TILLER ACCESSORY)
TRIM METHOD1 POWER TRIM AND TILT
TRIM RANGE-4 TO 16
TILT RANGE 65
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE
LUBRICATION     MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  2
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL
87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UNION»

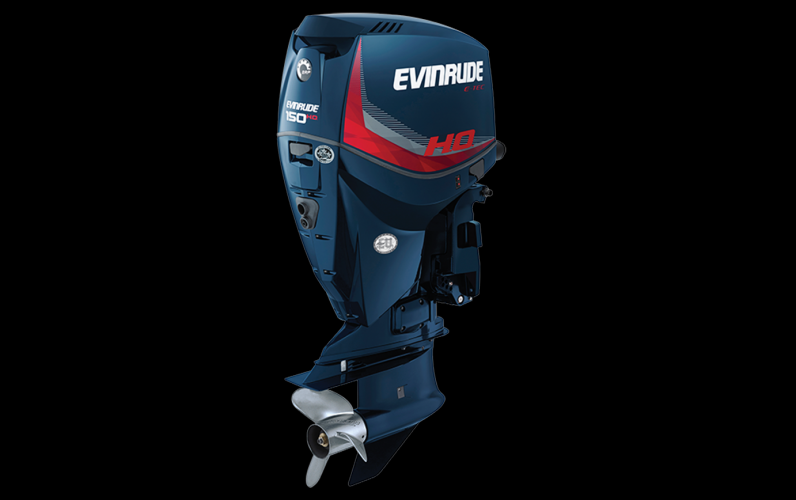

BRAND: EVINRUDE
TYPE:    H.O. SERIES
MODEL: H.O. SERIES
VERSION: 150 H.O.
SPECIFICATIONS
ENGINE MODEL
«E150HGL (GRAPHITE), E150HGX (GRAPHITE), E150DHL (BLUE), E150HSL (WHITE)»
ENGINE TYPE
V6 60° E-TEC D.I.
BORE X STROKE IN (MM) 3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC) 158.2 (2592) 2.6L
GEAR RATIO (SHAFT LENGTH)1   .86:1
FULL THROTTLE RPM RANGE 5500-6000 RPM
WEIGHT IN LBS (KG) (HP)2 418 (190KG)
STARTING 1
ELECTRIC
CONTROLS
MECH. / ICON EST DIGITAL (ACC’Y) MECH. OR ICON EST DIGITAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   133 AMPS TOTAL / 50 NET DEDICATED3
STEERING1
REMOTE
TRIM METHOD1 FASTRAK™
POWER TRIM AND TILT
TRIM RANGE -6 TO 15
TILT RANGE 75 DEG
SHAFT LENGTH (IN MM) COLOR (HP)1
«20” (508) GRAPHITE, BLUE OR WHITE, 25” (635) GRAPHITE»
LUBRICATION     PINPOINT OILING
OIL TANK CAPACITY (L)  «10, 3 OR 1.8»
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL
87 OCTANE
COUNTER ROTATION      N/A
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UNION»
