BRAND: EVINRUDE
TYPE:    H.O. SERIES
MODEL: H.O. SERIES
VERSION: 90 H.O.
SPECIFICATIONS
ENGINE MODEL
«E90DHL (BLUE), E90HSL (WHITE), E90HSX (WHITE)»
ENGINE TYPE
V4 60° E-TEC D.I.
BORE X STROKE IN (MM)
3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC)
105.4 (1726) 1.7L
GEAR RATIO (SHAFT LENGTH)1   2.00:1 (20”) / 2.25:1 (25”)
FULL THROTTLE RPM RANGE
5500-6000 RPM
WEIGHT IN LBS (KG) (HP)2
390 (177 KG) (20”) / 405 (184KG) (25”)
STARTING 1
ELECTRIC
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT
133 AMPS TOTAL / 50 NET DEDICATED3
STEERING1
REMOTE (TILLER ACCESSORY)
TRIM METHOD1 TRAC-1 POWER TRIM AND TILT (20”) / FASTRAK™ POWER TRIM AND TILT (25”)
TRIM RANGE -4 TO 17
TILT RANGE 75 DEG
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE / 25” (635) WHITE
LUBRICATION
MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  «OPTIONAL 10, 3, 1.8 GAL»
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL   87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»

BRAND:  EVINRUDE
TYPE:     INLINE
MODEL:   INLINE
VERSION: 40 HP
SPECIFICATIONS
ENGINE MODEL
«E40DRL (BLUE), E40DPL (BLUE), E40DSL (WHITE), E40DTL (BLUE)»
ENGINE TYPE
INLINE 2-CYLINDER E-TEC D.I.
BORE X STROKE IN (MM)
3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC)
52.7 (864) INLINE 2
GEAR RATIO (SHAFT LENGTH)1   2.9:1
FULL THROTTLE RPM RANGE
5500-6000RPM
WEIGHT IN LBS (KG) (HP)2
232 (105 KG)
STARTING 1
ELECTRIC OR ROPE
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   81 AMPS TOTAL / 25 NET DEDICATED2
STEERING1
REMOTE OR TILLER (TILLER ACCESSORY)
TRIM METHOD1 POWER TRIM AND TILT OR MANUAL TILT
TRIM RANGE-4 TO 16
TILT RANGE 65
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE
LUBRICATION
MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  2
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL
87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UNION»

BRAND: EVINRUDE
TYPE:  INLINE
MODE  INLINE
VERSION 30 HP
SPECIFICATIONS
ENGINE MODEL
«E30DR (BLUE), E30DRS (WHITE), E30DRL (BLUE), E30DRSL (WHITE), E30DTE (BLUE), E30DTEL (BLUE), E30TESL (WHITE), E30DEL (BLUE), E30DPL (BLUE), E30DPSL (WHITE), E30DTL (BLUE), E30DTSL (WHITE)»
ENGINE TYPE
INLINE 2-CYLINDER E-TEC D.I.
BORE X STROKE IN (MM)
2.992 X 2.5 (76 X 64)
DISPLACEMENT CU IN (CC)
35.2 (577) INLINE 2
GEAR RATIO (SHAFT LENGTH)1   2.15:1
FULL THROTTLE RPM RANGE
5000-6000RPM
WEIGHT IN LBS (KG) (HP)2
150 (68 KG)
STARTING 1
ELECTRIC/ ROPE3
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   56 AMPS TOTAL / 15 AMPS NET DEDICATED5
STEERING1
TILLER OR REMOTE
TRIM METHOD1 POWER TRIM AND TILT OR MANUAL TILT
TRIM RANGE -4 TO 16
TILT RANGE 65
SHAFT LENGTH (IN MM) COLOR (HP)1
15” (381) BLUE OR WHITE / 20” (508) BLUE OR WHITE
LUBRICATION     MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  1.5
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL   87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UNION»

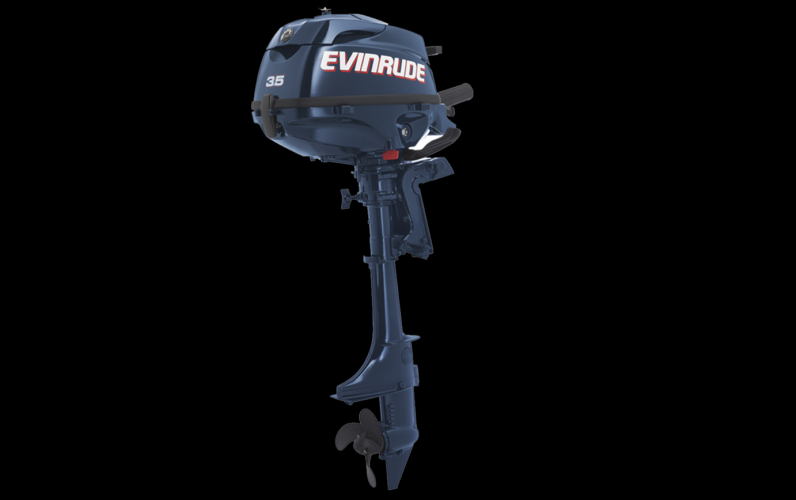

BRAND:    EVINRUDE
TYPE:       PORTABLES
MODEL:    PORTABLES
VERSION: 3.5 HP
SPECIFICATIONS
ENGINE MODEL E3R4 (BLUE)
ENGINE TYPE     1-CYLINDER
BORE X STROKE IN (MM)             55 X 36 (2.17 X 1.42)
DISPLACEMENT CU IN (CC)          5.3 (87)
GEAR RATIO (SHAFT LENGTH)1   2.15:1
FULL THROTTLE RPM RANGE      5000-6000 RPM
WEIGHT IN LBS (KG) (HP)2            41 (18.4 KG)
STARTING 1
ROPE
CONTROLS
TILLER HANDLE
FUEL INDUCTION
CARBURETED
STEERING1
TILLER OR REMOTE
TRIM METHOD1 MANUAL
SHAFT LENGTH (IN MM) COLOR (HP)1      15” (381) BLUE
RECOMMENDED FUEL
87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
