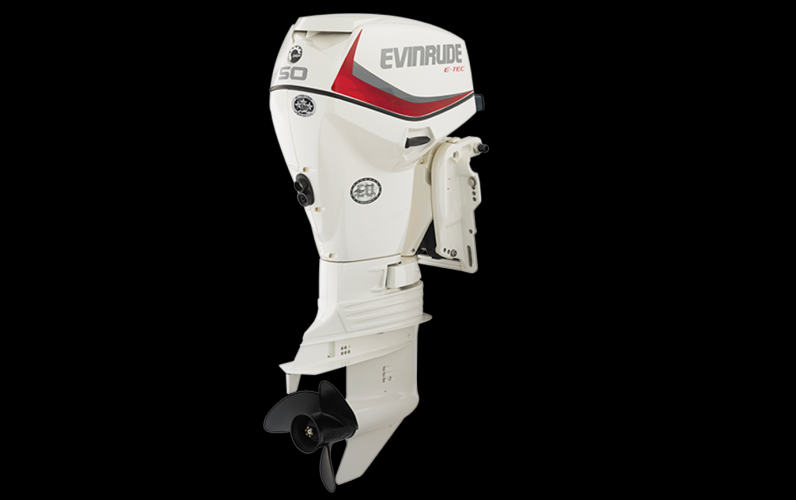

E-TEC 50 HP

BRAND: EVINRUDE
TYPE:      INLINE
MODEL:   INLINE
VERSION: 50 HP
SPECIFICATIONS
ENGINE MODEL
«E50DPL (BLUE), E50DSL (WHITE), E50DTL (BLUE)»
ENGINE TYPE
INLINE 2-CYLINDER E-TEC D.I.
BORE X STROKE IN (MM)
3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC)
52.7 (864) INLINE 2
GEAR RATIO (SHAFT LENGTH)1   2.9:1
FULL THROTTLE RPM RANGE
5500-6000RPM
WEIGHT IN LBS (KG) (HP)2
240 (109KG)
STARTING 1
ELECTRIC
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   81 AMPS TOTAL / 25 NET DEDICATED2
STEERING1
REMOTE (TILLER ACCESSORY)
TRIM METHOD1 POWER TRIM AND TILT
TRIM RANGE -4 TO 16
TILT RANGE 65
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE
LUBRICATION
MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  2
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL   87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UN
