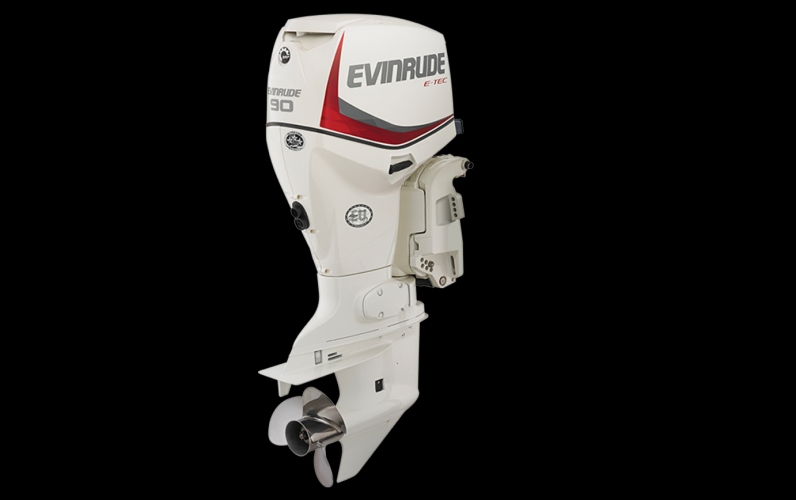

E-TEC 90 HP

BRAND: EVINRUDE
TYPE:        INLINE
MODEL:     INLINE
VERSION:  90 HP
SPECIFICATIONS
ENGINE MODEL «E90DPL (BLUE), E90DSL (WHITE), E90DPX (WHITE)»
ENGINE TYPE
INLINE 3-CYLINDER E-TEC D.I.
BORE X STROKE IN (MM)
3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC)
79.1 (1295) INLINE 3
GEAR RATIO (SHAFT LENGTH)1   2.00:1 (20”) / 2.25:1 (25”)
FULL THROTTLE RPM RANGE
5000-5500 RPM
WEIGHT IN LBS (KG) (HP)2
320 (145 KG) / 335 (152KG)
STARTING 1
ELECTRIC
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   81 AMPS TOTAL / 25 NET DEDICATED3
STEERING1
REMOTE (TILLER ACCESSORY)
TRIM METHOD1 TRAC-1 POWER TRIM AND TILT
TRIM RANGE -4 TO 17
TILT RANGE 75 DEG
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE / 25” (635) WHITE
LUBRICATION
MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  «10, 3 OR 1.8»
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL   87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UNION»
